Digital Design & Fabrication

March 30, 2014

design project3d print3d printerdigital design

• This is part of the ID2112 - Digital Design & Fabrication module studied at National University of Singapore (NUS).
• Topics involved:
  • Advanced Surfacing
  • Parametric & Generative CAD Modelling
  • Digital Manufacturing

In this module, following digital tools and equipment were used to create and fabricate 3D products digitally:

• Rhinocerous 3D software
• Grasshopper software
• EOS 3D printer - Selective Laser Sintering (SLS) machine

Portfolio

A portfolio of my work is reproduced below (Best viewed on a bigger screen):

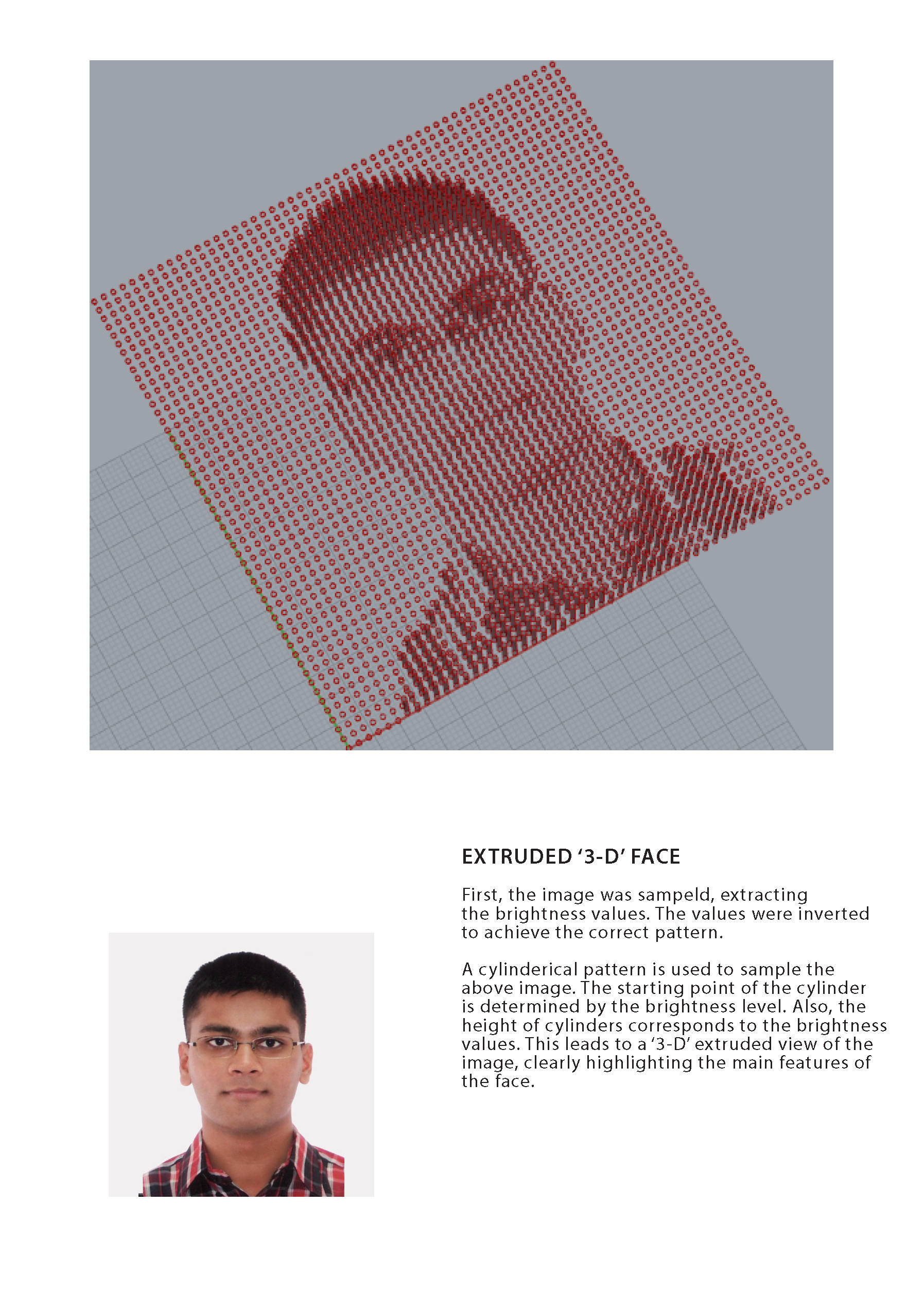

1. An ‘extruded-3D’ image

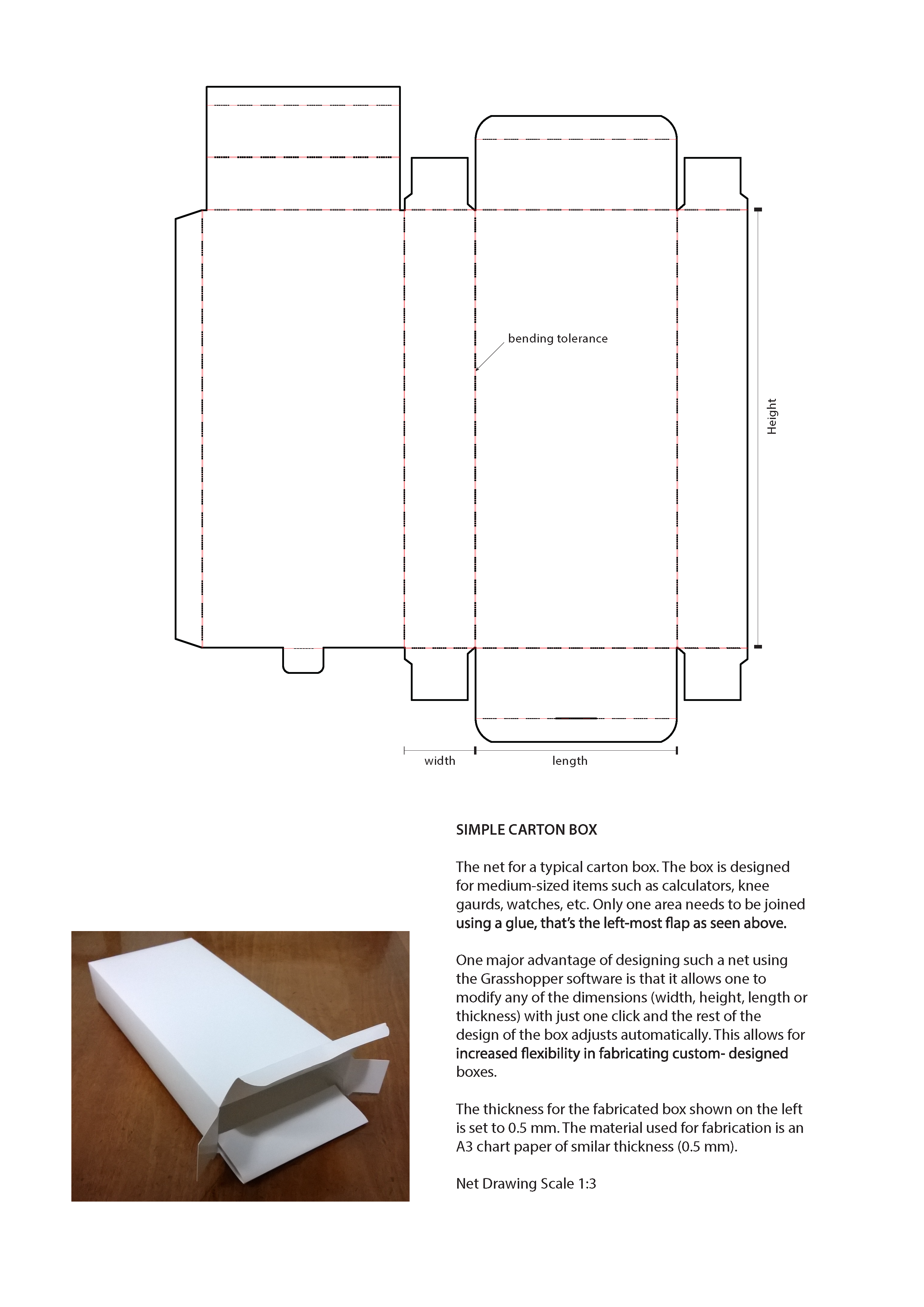

2. A simple box designed parametrically using Grasshopper software and fabricated using a digital cutter

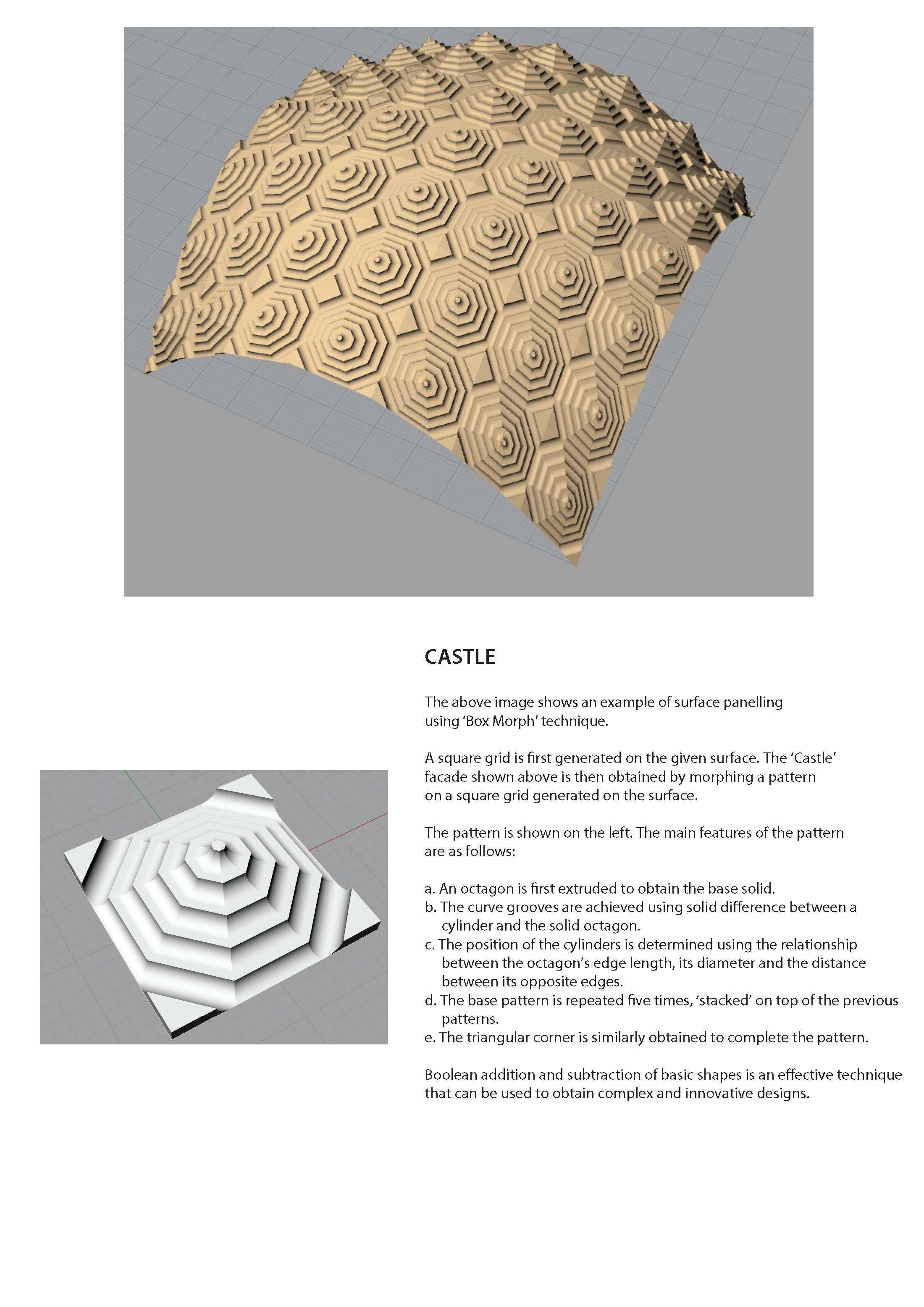

3. A surface panelling using ‘Box Morph’ technique in Grasshopper

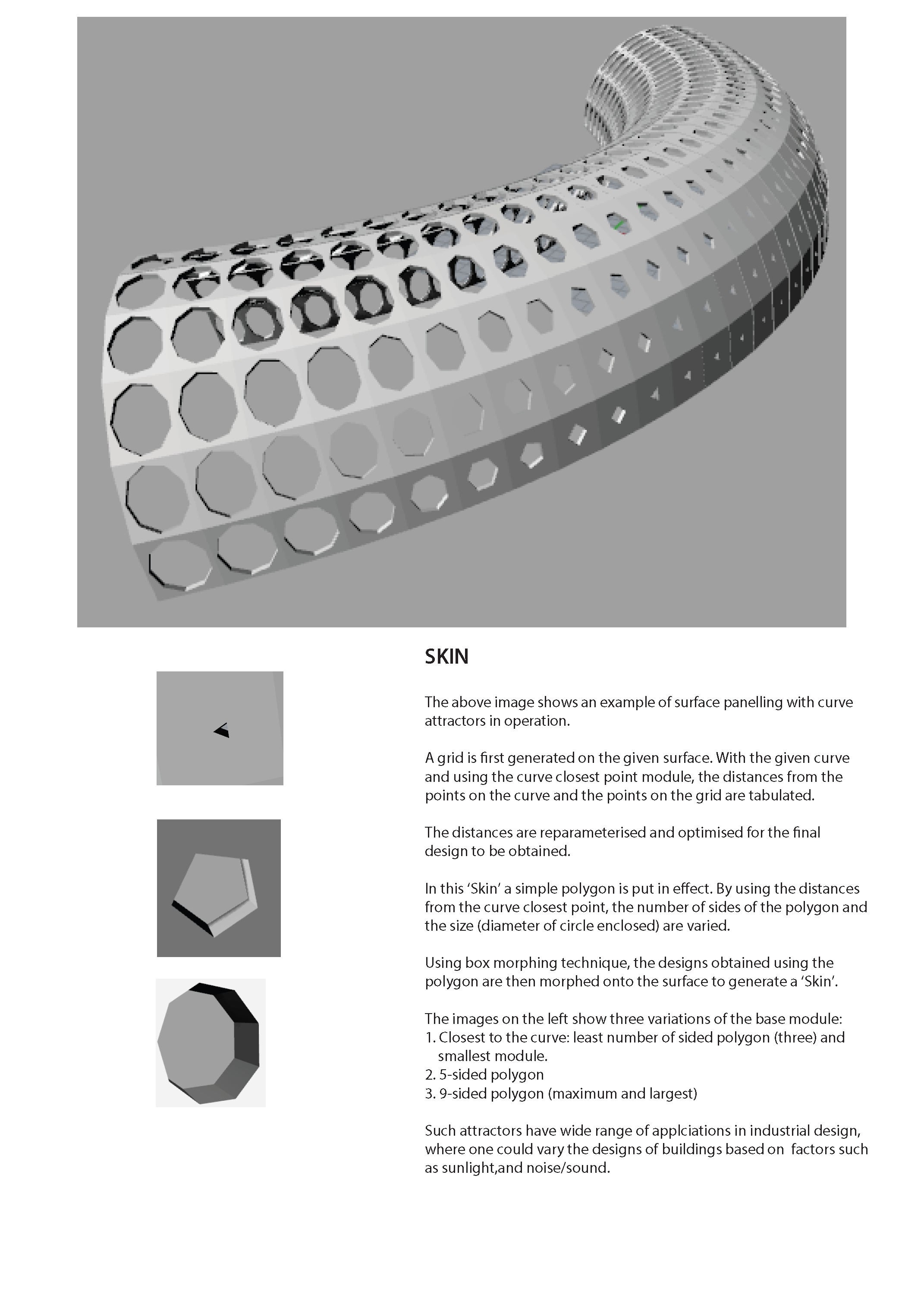

4. A surface panelling using ‘Curve Attractors’ technique in Grasshopper

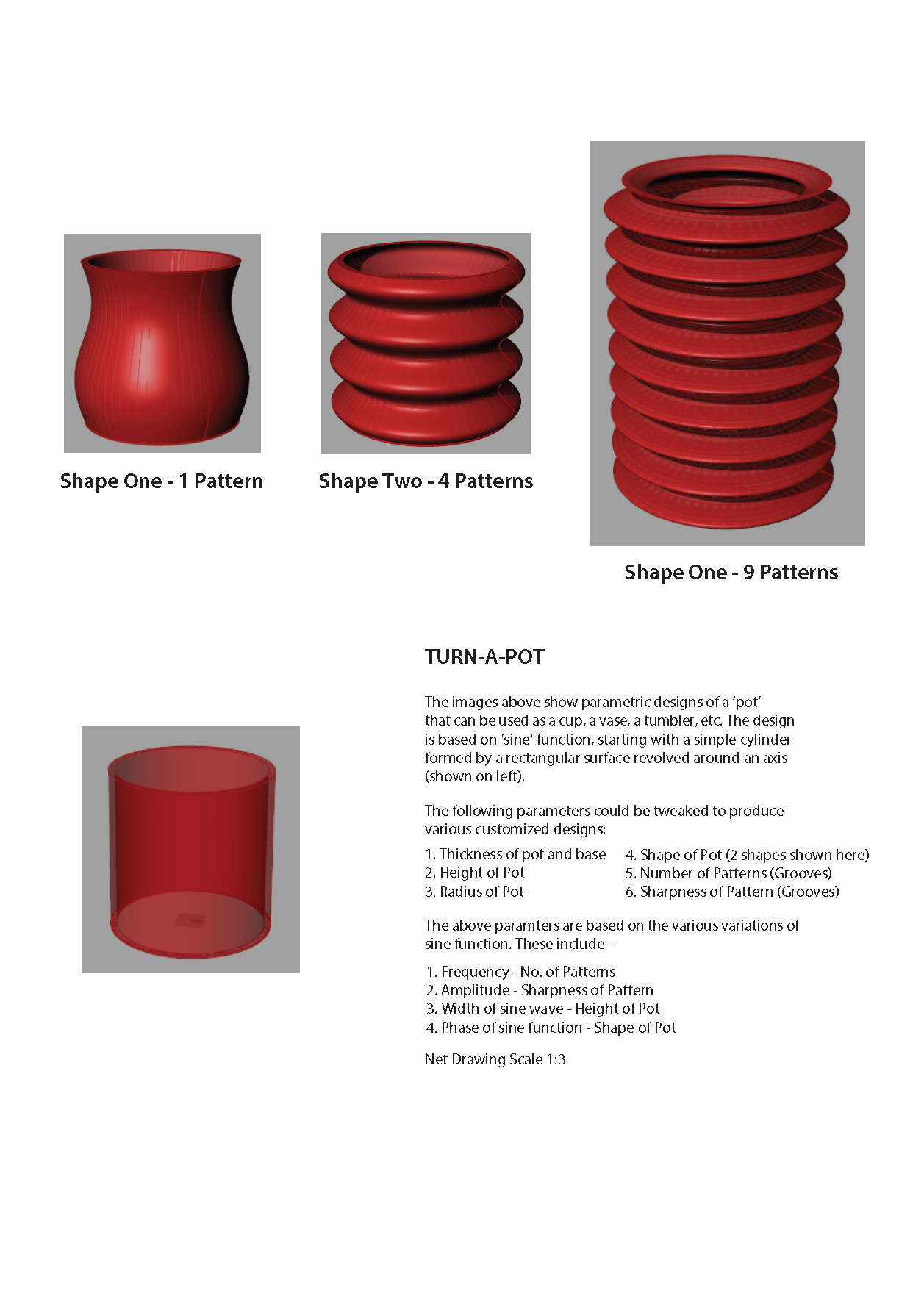

5. Turn-A-Pot: Parametric Design of a Pot (The pot was fabricated using the EOS SLS 3D printer)
